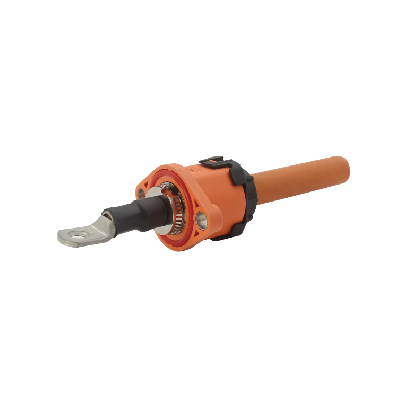

CPT series 180°pass-through connector

Easy installation, reliable connection, excellent shielding properties, and low-cost solution.

The connectors of the series are designed for plastic shell connectors in electric vehicles, and hybrid power automotors. Crimped with 16 to 50mm2 cable, maximum current up to 180A, 360°shield and high protection rating, which made the connectors satisfy secure and reliable import current demand in electrical vehicles, hybrid generators, generators, motor controllers, power inverters, PDU,and other application.

Download the manual

Technical Data

Technical Data Specification Table

Performance Data

1、Electrical Characteristic

■ Rated voltage：1000V DC

■Rated Current（Ambient temperature 30℃）

    80A （Fit for：16mm²)

   120A (Fit for：25mm²)

   150A (Fit for：35mm²)

   200A (Fit for：50mm²)

■ Insulation resistance：≥2000MΩ（Normalcy）

■Voltage Resistance：3000V AC

2、Other parameters

■Protection：IP67

■Temperature Range：-40℃～+125℃

■Cores ：2-core/ 3-core

■Wire Size：16～50mm² shielded cable

■Electromagnetic shielding：：360°


3、Material and Plating

■Shell Material:Nylon

​■Flammability Rating:UL94 V-0

■Seals：Silicon rubber


2 pins connector style

NO.Part NumberProduct DescriptionApplicable Cable
1CPT2-16MCPT series 2 pins pass-through connector/ with 16㎜2 cable16mm² shielded cable
2CPT2-25MCPT series 2 pins pass-through connector/ with 25㎜2 cable25mm² shielded cable
3CPT2-35MCPT series 2 pins pass-through connector/ with 35㎜2 cable35mm² shielded cable
4CPT2-50MCPT series 2 pins pass-through connector/ with 50㎜2 cable50mm² shielded cable

3 pins connector style

NO.Part NumberProduct DescriptionApplicable Cable
1CPT3-16CPT series 3 pins pass-through connector/ with 16㎜2 cable16mm² shielded cable
2CPT3-25CPT series 3 pins pass-through connector/ with 25㎜2 cable25mm² shielded cable
3CPT3-35CPT series 3 pins pass-through connector/ with 35㎜2 cable35mm² shielded cable
4CPT3-50CPT series 3 pins pass-through connector/ with 50㎜2 cable50mm² shielded cable

Model Description

​Series OfferingCPT
22 cores； 3 cores
-35Wire Size: 16-Fit for 16mm²，25-Fit for 25mm²,50-Fit for 50mm²
MM:2 cores products with M, 3 cores connector with blank
