Connector

Connector

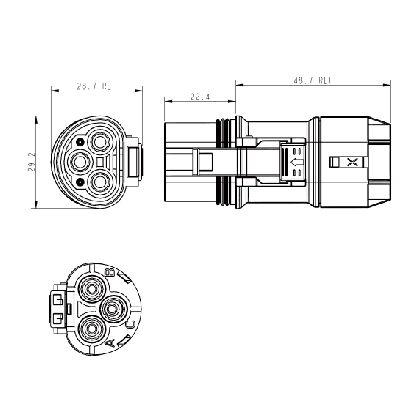

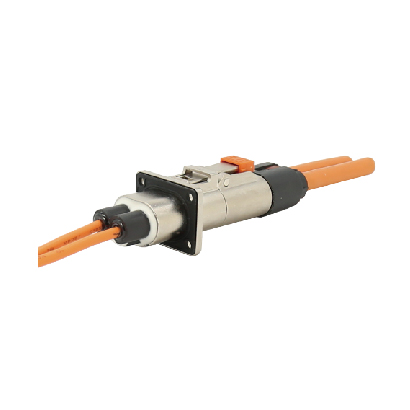

HV360 series with high voltage interlock connector

This is a plastic shell connector with small size,low weight，easy installation，and better reliability.It applies to all-in-one solution instead of two 2pins connectors to save more.

Hv360 series mainly applies to EV all-in-one solution,connecting air-conditioner and PTC.

Technical Data

Technical Data Specification Table

1、Electrical characteristic

■ Rated voltage：800V DC

■Rated current (ambient temperature 30℃)

   20A（(Fit for：2.5mm²)

   25A ((Fit for： 4mm²)

   40A ((Fit for： 6mm²)

■ Insulation resistance：：≥2000MΩ

■Voltage Resistance：2750V AC

2、Other parameters

■Protection：IP67

■Temperature range：-40℃～+125℃

■Electromagnetic Shielding ：360°Shielding

■Minimum Mating Cycles:≥200(Times)

■Cores:Four Pins​

■Wire size：2.5～6mm²

3、Material and Plating

■Shell material：PA66+GF25

■Flammability Rate：UL94 V-0

■Pin and Contact Material：Copper Alloy

■Plating：Silvering

■Seals：Silicon Rubber


Type Specification

No.Type spec.DescriptionApplicable cable size
1HV36064AH02Plug A key-press with high voltage interlock plug2.5mm² shielded cable
2HV36064AH04Plug A key-press with high voltage interlock plug4.0mm² shielded cable
3HV36064AH06Plug A key-press with high voltage interlock plug6.0mm² shielded cable

Receptacle Type

​No.Type spec.Description
Applicable cable size
1HV36004AH02Socket A key-press with high voltage interlock socket2.5mm² unshielded cable
2HV36004AH04Socket A key-press with high voltage interlock socket4.0mm² unshielded cable
3HV36004AH06Socket A key-press with high voltage interlock socket6.0mm² unshielded cable

Model description

Product seriesHV360
64​64-4 cores Plug      04-4 cores Receptacle
A(Key)：A,B,C,D (Just A key-press optional at present)
HHigh voltage interlock: H-high voltage interlock      N-Without HVIL
0202-2.5mm2,04-4.0mm2,06-6.0mm2
