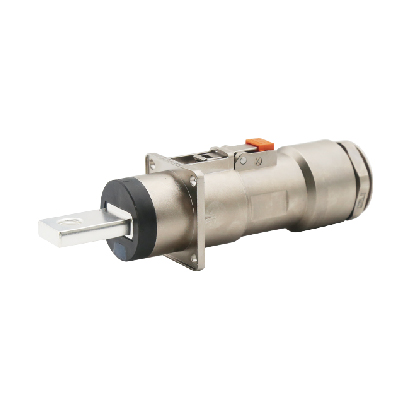

HPL500 series

HPL500 series are applying for the PDU,the electric control system, the battary of EV and HEV

HPL500 series are applying for the PDU,the electric control system, the battary of EV and HEV

Technical Data

Technical Data Specification Table

Features

Having different kinds of keys for anti-misinsertion

90°of forward and backward rotation

High-voltage interlocking connector



1、Electrical properties

■ rated voltage：1000V DC

■ Rated current(30℃)

   300A（wire size 95mm²)

   350A (wire size 120mm²)

   400A (wire size 135mm²)

   450A (wire size 150mm²)

■ insulation resistance：：≥2000MΩ(Normally)

■ withstand voltage：5000V AC

2、Other parameters

■Ingress protection：IP67

■Operating Temperature：-40℃～+125℃

■Number of positions ：1 core

■Wire range：90～150mm²

■ Mechanical lifetime：≥500cycles

3、Material &Surface treatment

■Aluminium alloy：PA66

■Flammability：UL94 V-0

■Inserts &Sockets：brass

■Surface treatment：silver plated

■sealing  material：silicone rubber


02_画板 1.jpg

03_画板 1.jpg

04_画板 1.jpg

HPL 28 X 501 95
1 2 3 4 5
1:Connector Series
2: 18-straight plug
 28- angle plug
3: Keyway X-X  Y-Y  U-U V-V W-W
4: 501--high-voltage interlocking     500--unhigh-voltage interlocking

5.Wire size  95-95mm²  120-120mm²   135-135mm²  150-150mm²

HPL 0 X 501 M10
1 2 3 4 5
1:Connector Series
2:00-receptacle
3: Keyway   X-X orange Y-Y  black U-Uyellow  V-V green  W-W red
4: 501--high-voltage interlocking     500--unhigh-voltage interlocking

5.Wire size  95-95mm²  120-120mm²   135-135mm²  150-150mm²

​
