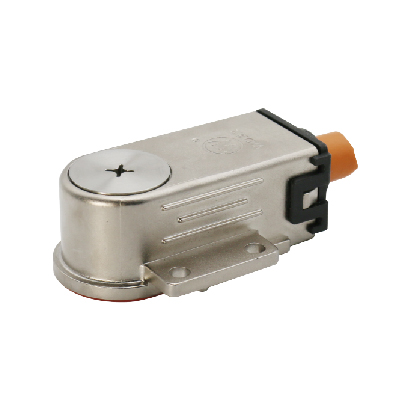

DDH screw-connected s,igle-hole connector

DDH series are applying for the PDU,the electric control system, the battary of EV and HEV.

DDH series are applying for the PDU,the electric control system, the battary of EV and HEV.

Technical Data

Technical Data Specification Table

Features

Single-hole , small resistance, Low temperature rise

​Firm installation ,easy connection, high reliability.



1、Electrical properties

■ rated voltage：1000V DC

■ Rated current(30℃)

   80A （wire size 16mm²)

   120A (wire size 25mm²)

   150A (wire size 35mm²)

   200A (wire size 50mm²)

■ insulation resistance：：≥5000MΩ(Normally)

■ withstand voltage：3000V AC

2、Other parameters

■Ingress protection：IP67

■Operating Temperature：-40℃～+125℃

■Number of positions ：2/3 core

■Wire range：16～50mm²

3、Material &Surface treatment

■Shell material ：Aluminium alloy

■Aluminium alloy：PA66

■Flammability：UL94 V-0

■Inserts &Sockets：brass

■Surface treatment：silver plated

■sealing  material：silicone rubber


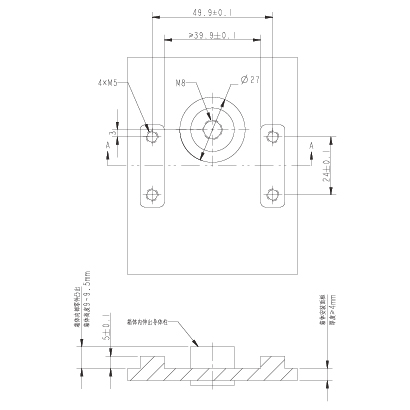

02_画板 1.jpg

03_画板 1.jpg

DDH   001 /002
1 2
1:Connector Series
2: 001-shell assembly  002-attachment
Note: 001 and 002 need be puachased together

​
