Hd01 Spiral 90° 2 pins/ 3 pins pass-through connector

1.The product is a kind of high voltage connector with small size and compact construction, which has 360° shielded function; 2.It adopts metal shell designs, which has properties like vibration resistance, quake-proof, easy to install, reliable and aesthetic.

The products are widely use in electric motor generator, generator, motor controllers, power inverters, PDU,and other large current connector applications.

Download the manual

Technical Data

Technical Data Specification Table

Performance Data

1、Electrical Characteristic

■ Rated Voltage：1000V DC

■Rated Current （Ambient temperature 30℃）

   80A （Fit for：16mm²)

  120A (Fit for：25mm²)

  150A (Fit for：35mm²)

  200A (Fit for：50mm²)

■Insulation Resistance：≥2000MΩ(Normally)

■Voltage Resistance：3000V AC

2、Other parameters

■Protection：IP67

■Temperature Range：-40℃～+125℃

■Cores ：2-core/ 3-core

■Wire Size：16～50mm² shielded cable

■Electromagnetic Shielding :360°

3、Material and Plating​​

■Shell material ：Aluminium alloy

■Plating：Nickel-plated

■Insulation Inserts:PA66

■Flammability Rating：UL94 V-0

■Seals：Silicon rubber

​

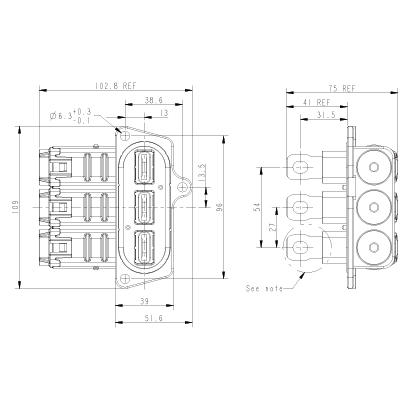

HD01 Type

NO.Type SpecificationProduct DescriptionApplicable Cable Size
1HD01-2-16-D2 pins elbow angle removable pass-through connector-M816mm² shielded cable
2HD01-2-25-D2 pins elbow angle removable pass-through connector-M825mm² shielded cable
3HD01-2-35-D2 pins elbow angle removable pass-through connector-M835mm² shielded cable
4HD01-2-50-D2 pins elbow angle removable pass-through connector-M850mm² shielded cable
5HD01-3-16-D3 pins elbow angle removable pass-through connector-M816mm² shielded cable
6HD01-3-25-D3 pins elbow angle removable pass-through connector-M825mm² shielded cable
7HD01-3-35-D3 pins elbow angle removable pass-through connector-M835mm² shielded cable
8HD01-3-50-D3 pins elbow angle removable pass-through connector-M850mm² shielded cable

NO.Type SpecificationProduct DescriptionApplicable Cable Size
1HD01-2-16-D2 pins elbow angle removable pass-through connector-M616mm² shielded cable
2HD01-2-25-D2 pins elbow angle removable pass-through connector-M625mm² shielded cable
3HD01-2-35-D2 pins elbow angle removable pass-through connector-M635mm² shielded cable
4HD01-2-50-D2 pins elbow angle removable pass-through connector-M650mm² shielded cable
5HD01-3-16-D3 pins elbow angle removable pass-through connector-M616mm² shielded cable
6HD01-3-25-D3 pins elbow angle removable pass-through connector-M625mm² shielded cable
7HD01-3-35-D3 pins elbow angle removable pass-through connector-M635mm² shielded cable
8HD01-3-50-D3 pins elbow angle removable pass-through connector-M650mm² shielded cable
Model Description


Series OfferingHD01
2​Cores： 2-2 pins  3-3 pins
16

Wire Size: 16-fit for 16mm2 cable

 25-fit for 25mm2 cable

35-fit for 35mm2 cable  50-fit for 50mm2 cable

X

Customized copper row length B、D……

B type applies to M6, D type applies to M8
