Heat Shrink Moulded Shapes

Heat Shrink Moulded Shapes

WRSLT

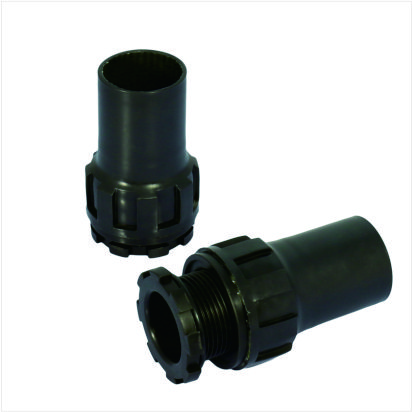

Heat Shrink Cable Entry Seal

Made of flame-retardant polyolefin, inner coated with adhesive to provide sealing protection. Provides a watertight and fume-tight seal where cables enter connection boxes, bulkheads, or other enclosures. Consists of a three-part assembly- a rigid plastic nut, O-ring, and a heat shrink moulded body. Continuous operation temperature: -55℃ to 90℃.

Download the manual

Technical Data

Technical Data Specification Table

​

PropertyTest MethodStandard Value
Tensile StrengthASTM-D-2671≥10MPa
Elongation at BreakASTM-D-2671≥300%
Tensile Strength Variation After Heat Aging（130℃x168h）ASTM-D-5510≤±20%
Elongation at Break Variation After Heat Aging（130℃x168h）ASTM-D-5510≤±20%
Water AbsorptionISO 62≤0.1%
Dielectric StrengthIEC 60243≥20kV/mm
Volume ResistivityIEC 60093≥1x1014Ω.cm

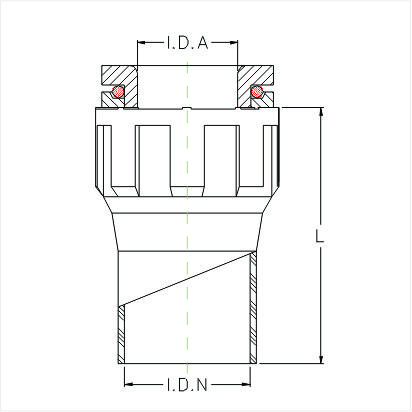

Part Number

As Supplied

Length (L)

(±5mm)

As Supplied

Nose I.D.

((I.D.N,Min)/mm

After Recovered

Nose I.D.

(I.D.N,Max)/mm

Body

I.D(I.D.A,±5mm)

WRSLT-495451941
WRSLT-5162703674

​
