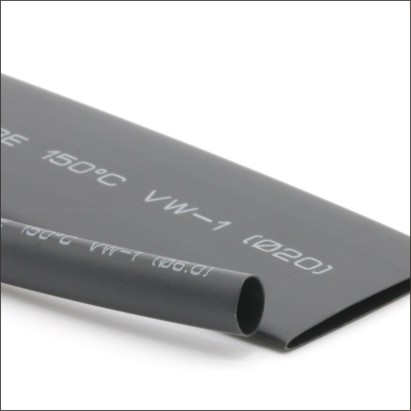

RSFR-HT

150℃ Flame retardant heat shrink tubing

Download the manual

Technical Data

Technical Data Specification Table

Features

● 2:1 shrink ratio

● Flame retardant

● Good resistance to common fluids and solvents

● UL approved

● Continuous operating temperature:-55℃～150℃

● Fully shrink temperature:≥135℃

● RoHS compliant

Technical Data

Property	Test Method	Typical Performance
Tensile strength(MPa)	ASTM D2671	≥10.4
Ultimate elongation(%)	ASTM D2671	≥200
Tensile strength after heat aged (Mpa)	180℃X168h	≥7.3
Ultimate elongation after heat aged(%)	180℃X168h	≥100
Corrosion	UL 224	Pass
Flammability	ASTM D 2671C method	VW-1
Voltage withstand	2500V, 60s	No breakdown
Heat shock	250℃X4h	No cracks, flowing or dripping
Cold blend	-30℃X1h	No cracks
Dielectric strength(kv/mm)	ASTM D149	≥15
Volume resistivity (Ω·cm)	ASTM D876	≥10¹⁴
Water absorption(%)	ASTM D570	≤0.5

Dimensions

Size		As Supplied	After Recovery		Standard Package
Inch	mm	Inner Diameter mm	Inner Diameter mm	Wall Thickness mm	Spool Length M/spool
3/64	1.0	≥1.20	≤0.6	0.41±0.10	200
1/16	1.5	≥1.60	≤0.8	0.43±0.10	200
3/32	2.5	≥2.40	≤1.2	0.51±0.10	200
1/8	3.0	≥3.20	≤1.6	0.51±0.10	200
3/16	4.5	≥4.80	≤2.4	0.51±0.10	100
1/4	6.0	≥6.40	≤3.2	0.64±0.10	100
3/8	9.0	≥9.50	≤4.8	0.64±0.10	100
1/2	12.0	≥12.70	≤6.4	0.64±0.10	100
3/4	18.0	≥19.10	≤9.5	0.76±0.15	100
1	25.0	≥25.40	≤12.7	0.89±0.15	50
5/4	32.0	≥32.00	≤15.9	0.89±0.15	50
3/2	38.0	≥38.00	≤19.1	1.00±0.15	50
2	50.0	≥51.00	≤25.4	1.15±0.15	25
3	75.0	≥76.00	≤38.1	1.27±0.20	25
4	100.0	≥102.00	≤50.8	1.40±0.20	25
5	120.0	≥125.00	≤63.5	1.40±0.25	25
