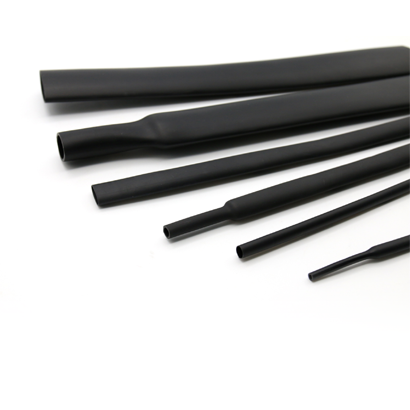

Diesel resistant elastomeric heat shrink tubing for protecting cables, wire harness and brake lines in transportation and military applications where resistance to diesel, oil, hydraulic fluids and other chemicals is critical.
Download the manualDiesel resistant elastomeric heat shrink tubing for protecting cables, wire harness and brake lines in transportation and military applications where resistance to diesel, oil, hydraulic fluids and other chemicals is critical.
● 2:1 shrink ratio
● Long term resistance to diesel, hydraulic fluids and chemicals
● Flexible
● Flame ratardant
● High abrasion and cut resistance
● Continuous operating temperature:-75℃-150℃
● Fully shrink temperature:130℃
● Meets 23053/16
Property | Test Method | Standard | Standard |
Tensile Strength(MPa) | ASTM D2671 | ≥10.4 | 11.5 |
Elongation(%) | ASTM D2671 | ≥250 | 350 |
Tensile Strength after aging (MPa) | 150℃ X168hr | ≥8.0 | 8.5 |
Elongation after aging(%) | 150℃ X168hr | ≥200 | 300 |
Dieletric strength(kV/mm) | IEC 60243 | ≥11.9 | 15 |
Flammability | ASTM D2671 B | Pass | Pass |
Dimensions
Size | Expanded | Recovered | Standard Package | Round/Flat | ||
Inch | mm | Inner Diameter (mm) | Inner Diameter (mm) | Wall Thickness (mm) | ||
1/8 | 3.2 | 3.2 | 1.6 | 0.76±0.15 | 200m/spool | Round |
3/16 | 4.8 | 4.8 | 2.4 | 0.84±0.15 | 100m/spool | Round |
1/4 | 6.4 | 6.4 | 3.2 | 0.89±0.15 | 100m/spool | Flat |
3/8 | 9.5 | 9.5 | 4.8 | 1.02±0.20 | 50m/spool | Flat |
1/ 2 | 12.7 | 12.7 | 6.4 | 1.22±0.20 | 50m/spool | Flat |
3/4 | 19.0 | 19.0 | 9.5 | 1.45±0.28 | 50m/spool | Flat |
1 | 25.4 | 25.4 | 12.7 | 1.78±0.28 | 25m/spool | Flat |
1-1/ 2 | 38.1 | 38.1 | 19.0 | 2.41±0.41 | 25m/spool | Flat |
2 | 50.8 | 50.8 | 25.4 | 2.79±0.41 | 20.4m/spool | Flat |
3 | 76.0 | 76.0 | 38.0 | 3.18±0.50 | 25m/pc | Flat |
Note: 3:1 shrink ratio is available upon request
